紧固件解决方案专家

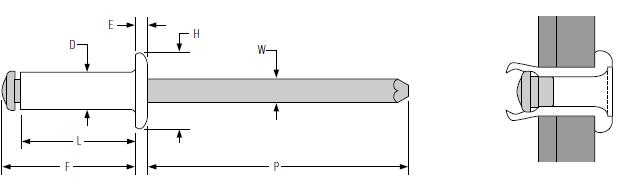

| 直径 | 代码 | 孔径 | 钻孔 | D | H | E | W | P |
| (公称尺寸) | (公称尺寸) | (参考尺寸) | (公称尺寸) | (最小尺寸) | ||||
| 3/32 | -3 | .097-.100 | #41 | 0.094 | 0.188 | 0.032 | 0.057 | 1 |
| 1/8 | -4 | .129-.133 | #30 | 0.125 | 0.25 | 0.04 | 0.076 | 1 |
| 5/32 | -5 | .160-.164 | #20 | 0.156 | 0.312 | 0.05 | 0.095 | 1 |
| 3/16 | -6 | .192-.196 | #11 | 0.187 | 0.375 | 0.06 | 0.114 | 1 |
| 1/4 | -8 | .257-.261 | F | 0.25 | 0.5 | 0.08 | 0.151 | 1 |
