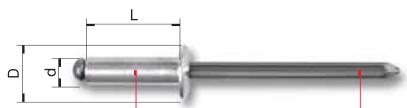

尺寸规格：
| d | L | D | 编号 |  |
 |
 |
 |
| 2.4 | 6 | 5 | 501240603 | 2.5 | 0.5 ÷ 3 | 66 (650 N ) |
45 (450 N) |
| 8 | 501240803 | 3 ÷ 5 | |||||
| 10 | 501241003 | 5 ÷ 7 | |||||
| 12 | 501241203 | 7 ÷ 9 | |||||
| 3 | 5 | 6 | 501300503 | 3.1 | 0.5 ÷ 2 | 101 (1000 N) |
76 (750 N) |
| 6 | 501300603 | 2 ÷ 3 | |||||
| 8 | 501300803 | 3 ÷ 5 | |||||
| 10 | 501301003 | 5 ÷ 7 | |||||
| 12 | 501301203 | 7 ÷ 9 | |||||
| 14 | 501301403 | 9 ÷ 11 | |||||
| 16 | 501301603 | 11 ÷ 13 | |||||
| 3.2 | 6 | 6.5 | 501320603 | 3.3 | 0.5 ÷ 3 | 127 (1250 N) |
91 (900 N) |
| 8 | 501320803 | 3 ÷ 5 | |||||
| 10 | 501321003 | 5 ÷ 7 | |||||
| 12 | 501321203 | 7 ÷ 9 | |||||
| 14 | 501321403 | 9 ÷ 11 | |||||
| 16 | 501321603 | 11 ÷ 13 | |||||
| 18 | 501321803 | 13 ÷ 15 | |||||
| 3.4 | 6 | 7 | 501340603 | 3.5 | 0.5 ÷ 3 | 132 (1300 N) |
81 (800 N) |
| 7 | 501340703 | 3 ÷ 4 | |||||
| 9 | 501340903 | 4 ÷ 6 | |||||
| 12 | 501341203 | 6 ÷ 9 | |||||
| 14 | 501341403 | 9 ÷ 11 | |||||
| 16 | 501341603 | 11 ÷ 13 | |||||
| 18 | 501341803 | 13 ÷ 15 | |||||
| 20 | 501342003 | 15 ÷ 17 |
