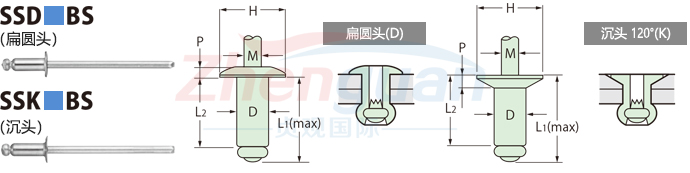

尺寸规格：
| 铆钉直径(mm) | 孔径(mm) | Rivet No.■ | 板厚(mm) | L1(mm) | L2(mm) | H (mm) |
P(mm) | M (mm) |
参考(N) | |||||
| 扁圆头 | 沉头 | 扁圆头 | 沉头 | 扁圆头 | 沉头 | 扁圆头 | 沉头 | 抗剪力 | 抗拉力 | |||||
| 3.2 ＋0.07 −0.11 |
3.3 | 41 | 1.0 - 1.6 | − | 9.2 | − | 4.8 | − | 6.4 ±0.3 | 0.9 ±0.2 | 0.8 ±0.2 | 1.9 | 2500 | 3000 |
| 42 | 1.6 - 3.2 | 1.6 - 3.2 | 10.8 | 11.6 | 6.4 | 7.2 | ||||||||
| 43 | 3.2 - 4.8 | 3.2 - 4.8 | 12.4 | 13.2 | 8 | 8.8 | ||||||||
| 44 | 4.8 - 6.4 | 4.8 - 6.4 | 13.9 | 14.7 | 9.5 | 10.3 | ||||||||
| 46 | 6.4 - 9.6 | − | 17.1 | − | 12.7 | − | ||||||||
| 4.0 ＋0.07 −0.11 |
4.1 | 52 | 1.2 - 3.2 | 2.2 - 3.2 | 11.4 | 12.8 | 7 | 8.4 | 8.0 ±0.4 | 1.1 ±0.2 | 1.4 ±0.2 | 2.4 | 3950 | 4950 |
| 53 | 3.2 - 4.8 | 3.2 - 4.8 | 13 | 14.4 | 8.6 | 10 | ||||||||
| 54 | 4.8 - 6.4 | 4.8 - 6.4 | 14.6 | 16 | 10.2 | 11.6 | ||||||||
| 56 | 6.4 - 9.6 | 6.4 - 9.6 | 17.7 | 19.1 | 13.3 | 14.7 | ||||||||
| 4.8 ＋0.07 −0.11 |
4.9 | 62 | 1.6 - 3.2 | − | 13 | − | 7.6 | − | 9.6 ±0.5 | 1.3 ±0.2 | − | 2.9 | 4730 | 5980 |
| 64 | 3.2 - 6.4 | − | 16.2 | − | 10.8 | − | ||||||||
| 66 | 6.4 - 9.6 | − | 19.4 | − | 14 | − | ||||||||
| 68 | 9.6 -12.8 | − | 22.6 | − | 17.2 | − | ||||||||
