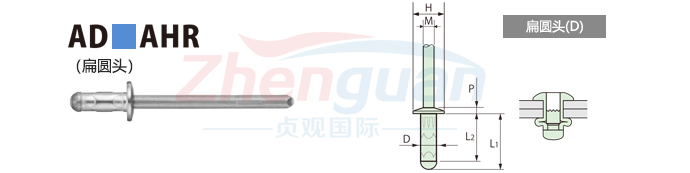

尺寸规格：
| 铆钉直径(mm) | 孔径(mm) | Rivet No.■ | 板厚(mm) | L1(mm) | L2(mm) | H (mm) |
P (mm) |
M (mm) |
参考(N) | |
| 抗剪力 | 抗拉力 | |||||||||
| 3.2 ＋0.17 −0.05 |
3.4 | 43 | 3.2 - 4.8 | 12.8 | 9.6 | 6.4 ±0.3 | 1.1 ±0.2 | 2.2 | 550 | 800 |
| 4.0 ＋0.17 −0.05 |
4.2 | 52 | 1.6 - 3.2 | 12.1 | 8.6 | 8.0 ±0.4 | 1.5 ±0.2 | 2.7 | 850 | 1120 |
| 53 | 3.2 - 4.8 | 13.7 | 10.2 | |||||||
| 4.8 ＋0.17 −0.05 |
5 | 62 | 1.6 - 3.2 | 13.5 | 9.2 | 9.6 ±0.4 | 1.9 ±0.2 | 3.4 | 1150 | 1650 |
| 63 | 3.2 - 4.8 | 15.1 | 10.8 | |||||||
| 64 | 4.8 - 6.4 | 16.7 | 12.4 | |||||||
| 10.2 ±0.15 | 10.6 | 135 | 4.0 - 8.0 | 20.0max | 16 | 17.5 ±0.6 | 4.0 ±0.3 | 7.3 | 10500 | 8500 |
| 10.25±0.15 | 139 | 8.0 - 14.0 | 28.0max | 24 | ||||||
