产品介绍：
Maxibolt®Plus盲螺栓的直径为-5，-6和-8，不锈钢和钛材料。 一个工具和拉头安装所有三个直径。 创造更大的盲区占地面积，在薄片和非金属应用中提供优异的性能。 冲洗破碎杆消除了剃须，而延长的抓握范围适应不同的应用厚度。

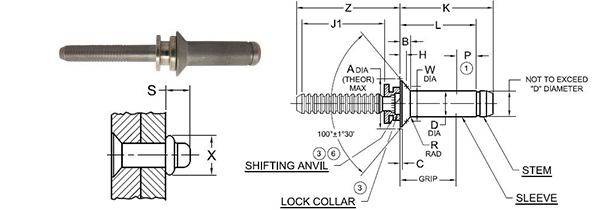

尺寸规格：
| 直径编号 | D | A | B | C | H | J1 | P | R | S | W | X | Z | 孔的限制 |
| -05 | .163 | .334 | .074 | .011 | .0206 .0171 |
.800 | .300 | .010 | .232 | .2832 .2830 |
.223 | .880 | .164/.167 |
| -06 | .198 | .387 | .082 | .013 | .0243 .0205 |
.830 | .320 | .015 | .292 | .3272 .3270 |
.270 | .940 | .199/.202 |
| -08 | .259 | .508 | .108 | .017 | .0310 .0270 |
.975 | .370 | .020 | .361 | .4320 .4318 |
.355 | 1.135 | .260/.263 |
| 直径编号 | 直径限制 | -5 DIA | ||||
| 重叠最小 | 最小 | 最大 | 重叠最大 | L | K | |
| -02 | / | .094 | .157 | .173 | .336 | .476 |
| -03 | .146 | .156 | .220 | .236 | .398 | .539 |
| -04 | .209 | .219 | .282 | .298 | .460 | .602 |
| -05 | .271 | .281 | .345 | .361 | .523 | .664 |
| -06 | .334 | .344 | .407 | .423 | .585 | .727 |
| -07 | .396 | .406 | .470 | .486 | .648 | .789 |
| -08 | .459 | .469 | .532 | .548 | .710 | .852 |
| -09 | .521 | .531 | .595 | .611 | .773 | .914 |
| -10 | .584 | .594 | .657 | .673 | .835 | .977 |
| -11 | .646 | .656 | .720 | .736 | .898 | 1.039 |
| -12 | .709 | .719 | .782 | .798 | .960 | 1.102 |
| -13 | .771 | .781 | .845 | .861 | 1.023 | 1.164 |
| -14 | .834 | .844 | .907 | .923 | 1.085 | 1.227 |
| -15 | .896 | .906 | .970 | .986 | 1.148 | 1.289 |
| -16 | .959 | .969 | 1.032 | 1.048 | / | / |
