紧固件解决方案专家

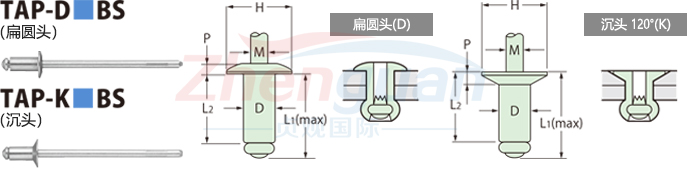

尺寸规格：
| 铆钉直径(mm) | 孔径(mm) | Rivet No.■ | 板厚(mm) | L1 (mm) |
L2(mm) | H (mm) |
P(mm) | M (mm) |
参考(N) | |||
| 扁圆头 | 沉头 | 扁圆头 | 沉头 | 抗剪力 | 抗拉力 | |||||||
| 2.0 ±0.07 | 2.1 | 20M1 | 1.0 - 1.6 | − | 7.5 | 4.1 | 3.8 ±0.2 | 0.6 ±0.15 | − | 1.1 | 370 | 560 |
| 20M2 | 1.6 - 3.2 | − | 9.1 | 5.7 | ||||||||
| 20M3 | 3.2 - 4.8 | − | 10.8 | 7.4 | ||||||||
| 20M4 | 4.8 - 6.4 | − | 12.4 | 9 | ||||||||
| 20M5 | 6.4 - 8.0 | − | 14.1 | 10.7 | ||||||||
| 2.4+0.07 -0.11 |
2.5 | 32 | 1.0 - 3.2 | 1.6 - 3.2 | 9.1 | 5.7 | 4.8 ±0.25 | 0.7 ±0.2 | 0.8 ±0.2 | 1.4 | 470 | 710 |
| 33 | 3.2 - 4.8 | 3.2 - 4.8 | 10.7 | 7.3 | ||||||||
| 34 | 4.8 - 6.4 | 4.8 - 6.4 | 12.3 | 8.9 | ||||||||
| 35 | 6.4 - 8.0 | 6.4 - 8.0 | 14.4 | 11 | ||||||||
| 36 | 8.0 - 9.6 | 8.0 - 9.6 | 16 | 12.6 | ||||||||
| 3.0＋0.07 −0.11 |
3.1 | 30M2 | 1.0 - 3.2 | 1.6 - 3.2 | 10.7 | 6.3 | 6.0 ±0.3 | 0.9 ±0.2 | 1.0 ±0.2 | 1.8 | 720 | 1050 |
| 30M3 | 3.2 - 4.8 | 3.2 - 4.8 | 12.4 | 8 | ||||||||
| 30M4 | 4.8 - 6.4 | − | 14.2 | 9.8 | ||||||||
| 3.2＋0.07 −0.11 |
3.3 | 41 | 1.0 - 1.6 | − | 8.8 | 4.4 | 6.4 ±0.3 | 0.9 ±0.2 | 1.1 ±0.2 | 1.8 | 910 | 1360 |
| 42 | 1.6 - 3.2 | 1.6 - 3.2 | 10.7 | 6.3 | ||||||||
| 43 | 3.2 - 4.8 | 3.2 - 4.8 | 12.4 | 8 | ||||||||
| 44 | 4.8 - 6.4 | 4.8 - 6.4 | 14.2 | 9.8 | ||||||||
| 45 | 6.4 - 8.0 | 6.4 - 8.0 | 16 | 11.6 | ||||||||
| 46 | 8.0 - 9.6 | 8.0 - 9.6 | 17.8 | 13.4 | ||||||||
| 48 | 9.6 - 12.8 | 9.6 - 12.8 | 21.4 | 17 | ||||||||
| 410 | 12.8 - 16.0 | − | 25 | 20.6 | ||||||||
| 412 | 16.0 - 19.2 | − | 28.6 | 24.2 | ||||||||
| 4.0 ＋0.07 −0.11 |
4.1 | 52 | 1.2 - 3.2 | 1.6 - 3.2 | 11.3 | 6.9 | 8.0 ±0.4 | 1.2 ±0.2 | 1.4 ±0.2 | 2.3 | 1390 | 2110 |
| 53 | 3.2 - 4.8 | 3.2 - 4.8 | 13 | 8.6 | ||||||||
| 54 | 4.8 - 6.4 | 4.8 - 6.4 | 14.8 | 10.4 | ||||||||
| 56 | 6.4 - 9.6 | 6.4 - 9.6 | 18.4 | 14 | ||||||||
| 58 | 9.6 - 12.8 | 9.6 - 12.8 | 22 | 17.6 | ||||||||
| 4.8 ＋0.07 −0.11 |
4.9 | 62 | 1.6 - 3.2 | 2.3 - 3.2 | 12.9 | 7.5 | 9.6 ±0.5 | 1.4 ±0.2 | 1.6 ±0.2 | 2.7 | 2140 | 3120 |
| 63 | 3.2 - 4.8 | 3.2 - 4.8 | 14.7 | 9.3 | ||||||||
| 64 | 4.8 - 6.4 | 4.8 - 6.4 | 16.5 | 11.1 | ||||||||
| 66 | 6.4 - 9.6 | 6.4 - 9.6 | 20.1 | 14.7 | ||||||||
| 68 | 9.6 - 12.8 | 9.6 - 12.8 | 23.6 | 18.2 | ||||||||
| 610 | 12.8 - 16.0 | 12.8 - 16.0 | 27 | 21.6 | ||||||||
| 612※ | 16.0 - 19.2 | − | 28.9 | 23.5 | 9.6 ±0.5 | 1.4 ±0.2 | − | 2.9 | 2020 | 2790 | ||
| 616※ | 19.2 - 25.6 | − | 35.3 | 29.9 | ||||||||
| 6.4 ＋0.07 −0.11 |
6.5 | 84※ | 3.2 - 6.4 | − | 17.6 | 12.1 | 12.8 ±0.6 | 1.7 ±0.2 | − | 3.8 | 3680 | 5520 |
| 86※ | 6.4 - 9.6 | − | 20.7 | 15.2 | ||||||||
| 88※ | 9.6 - 12.8 | − | 23.9 | 18.4 | ||||||||
| 812※ | 12.8 - 19.2 | − | 30.2 | 24.8 | ||||||||
