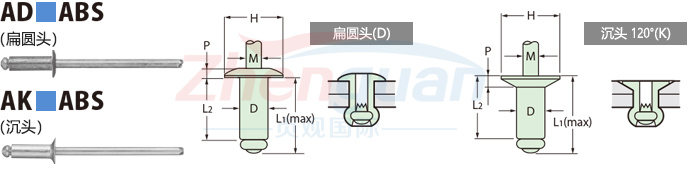

尺寸规格：
| 铆钉直径(mm) | 孔径(mm) | Rivet No.■ | 板厚(mm) | L1(mm) | L2(mm) | H (mm) |
P(mm) | M (mm) |
参考（N） | |||
| 扁圆头 | 沉头 | 扁圆头 | 沉头 | 抗剪力 | 抗拉力 | |||||||
| 2.4 ＋0.07 −0.11 |
2.5 | 32 | 1.0 - 3.2 | 1.6 - 3.2 | 9.1 | 5.7 | 4.8 ±0.25 | 0.7 ±0.2 | 0.8 ±0.2 | 1.5 | 360 | 540 |
| 34 | 3.2 - 6.4 | 3.2 - 6.4 | 12.3 | 8.9 | ||||||||
| 36 | 6.4 - 9.6 | − | 16 | 12.6 | ||||||||
| 3.2 ＋0.07 −0.11 |
3.3 | 41 | 1.0 - 1.6 | − | 9.2 | 4.8 | 6.4 ±0.3 | 0.9 ±0.2 | 1.1 ±0.2 | 1.9 | 660 | 980 |
| 42 | 1.6 - 3.2 | 1.6 - 3.2 | 10.8 | 6.4 | ||||||||
| 43 | 3.2 - 4.8 | 3.2 - 4.8 | 12.4 | 8 | ||||||||
| 44 | 4.8 - 6.4 | 4.8 - 6.4 | 13.9 | 9.5 | ||||||||
| 45 | 6.4 - 8.0 | 6.4 - 8.0 | 15.6 | 11.2 | ||||||||
| 46 | 8.0 - 9.6 | 8.0 - 9.6 | 17.1 | 12.7 | ||||||||
| 48 | 9.6 - 12.8 | 9.6 - 12.8 | 20.3 | 15.9 | ||||||||
| 410 | 12.8 - 16.0 | − | 24.1 | 19.7 | ||||||||
| 412 | 16.0 - 19.2 | − | 27.6 | 23.2 | ||||||||
| 4.0 ＋0.07 −0.11 |
4.1 | 52 | 1.2 - 3.2 | 1.6 - 3.2 | 11.4 | 7 | 8.0 ±0.4 | 1.2 ±0.2 | 1.4 ±0.2 | 2.4 | 1030 | 1560 |
| 53 | 3.2 - 4.8 | 3.2 - 4.8 | 13 | 8.6 | ||||||||
| 54 | 4.8 - 6.4 | 4.8 - 6.4 | 14.6 | 10.2 | ||||||||
| 56 | 6.4 - 9.6 | 6.4 - 9.6 | 17.7 | 13.3 | ||||||||
| 58 | 9.6 - 12.8 | 9.6 - 12.8 | 20.9 | 16.5 | ||||||||
| 4.8 ＋0.07 −0.11 |
4.9 | 62 | 1.6 - 3.2 | − | 13 | 7.6 | 9.6 ±0.5 | 1.4 ±0.2 | 1.6 ±0.2 | 2.9 | 1460 | 2200 |
| 64 | 3.2 - 6.4 | 3.2 - 6.4 | 16.2 | 10.8 | ||||||||
| 66 | 6.4 - 9.6 | 6.4 - 9.6 | 19.4 | 14 | ||||||||
| 68 | 9.6 - 12.8 | 9.6 - 12.8 | 22.6 | 17.2 | ||||||||
| 610 | 12.8 - 16.0 | − | 25.7 | 20.3 | ||||||||
| 612 | 16.0 - 19.2 | − | 28.9 | 23.5 | ||||||||
| 616 | 22.4 - 25.6 | − | 35.3 | 29.9 | ||||||||
